IR系列内环拉制外圈滚针轴承

Writer： admin Time：2021-04-13 10:52 Browse：℃

Place of Origin:	CHINA
Brand Name:	HUANNING（环聍）
Certification:	ISO SGS
Model Number:	IR5
Minimum Order Quantity:	10PCS
Price:	USD0.3-USD1 PER PIECE
Packaging Details:	Roll pack + Carton Box
Delivery Time:	2-5 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union,Paypal
Supply Ability:	100000 PCS PER MONTH

One Way Inner Rings ST14 10MM Drawn Cup Needle Bearing

Features

 · IR series inner rings

· are the standard inner rings for needle roller bearings

· are hardened and ground

· have a precision ground raceway surface with a lead-in chamfer on both sides

· The chamfers facilitate assembly and protect the seal lips from damage during the mounting process.

· are available in some sizes with a lubrication hole .

· Inner rings with additional lubrication holes are available on request.

· are available on request with a pre-ground raceway and a machining allowance.

· They can be finish ground after mounting on a shaft in applications where extremely tight geometrical tolerances are required.

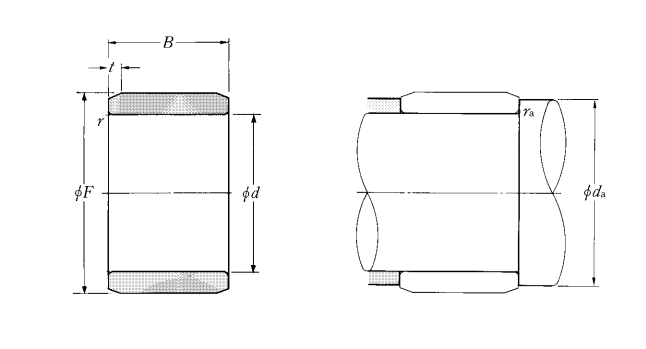

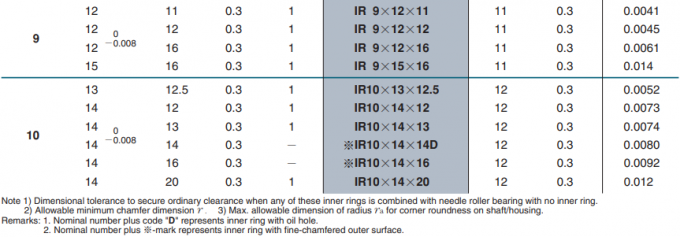

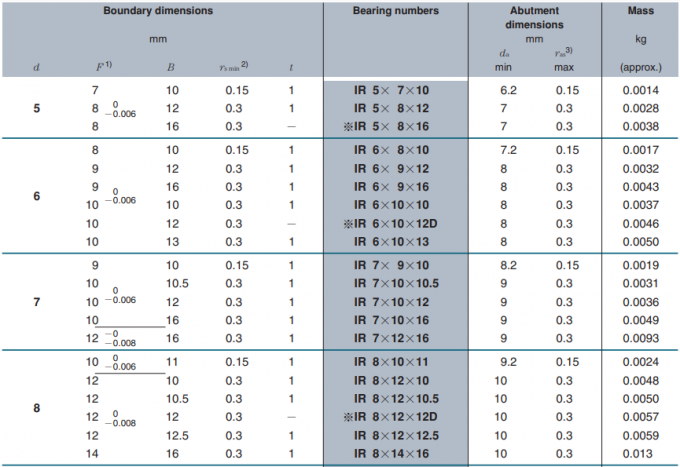

Dimensions and Capacities

Available bore size range from 5- 80mm .

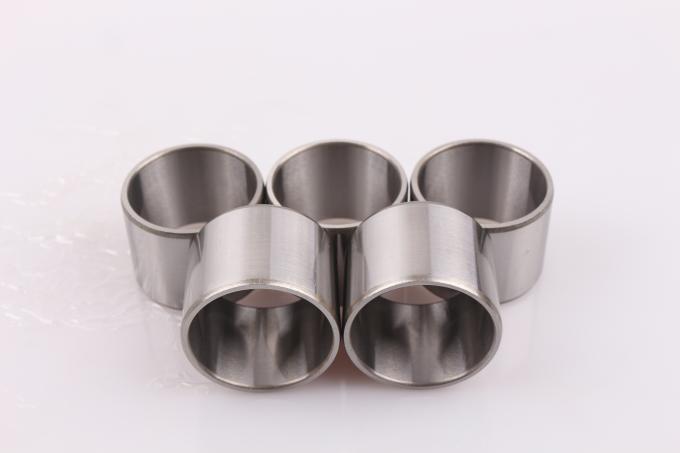

Pictures
